| Model | Outer Diameter Of Puncture Rod (D) | Puncture Tube Length (L) | Lnner Diameter Of Puncture Tube (d) |
|
| KLCC-5M | 5.8±0.8 | 77±2 | 5.85 |
| KLCC-10M | 10.8±0.8 | 102±2 | 11 |
| KLCC-12M | 12.8±0.8 | 152±2 | 13 |

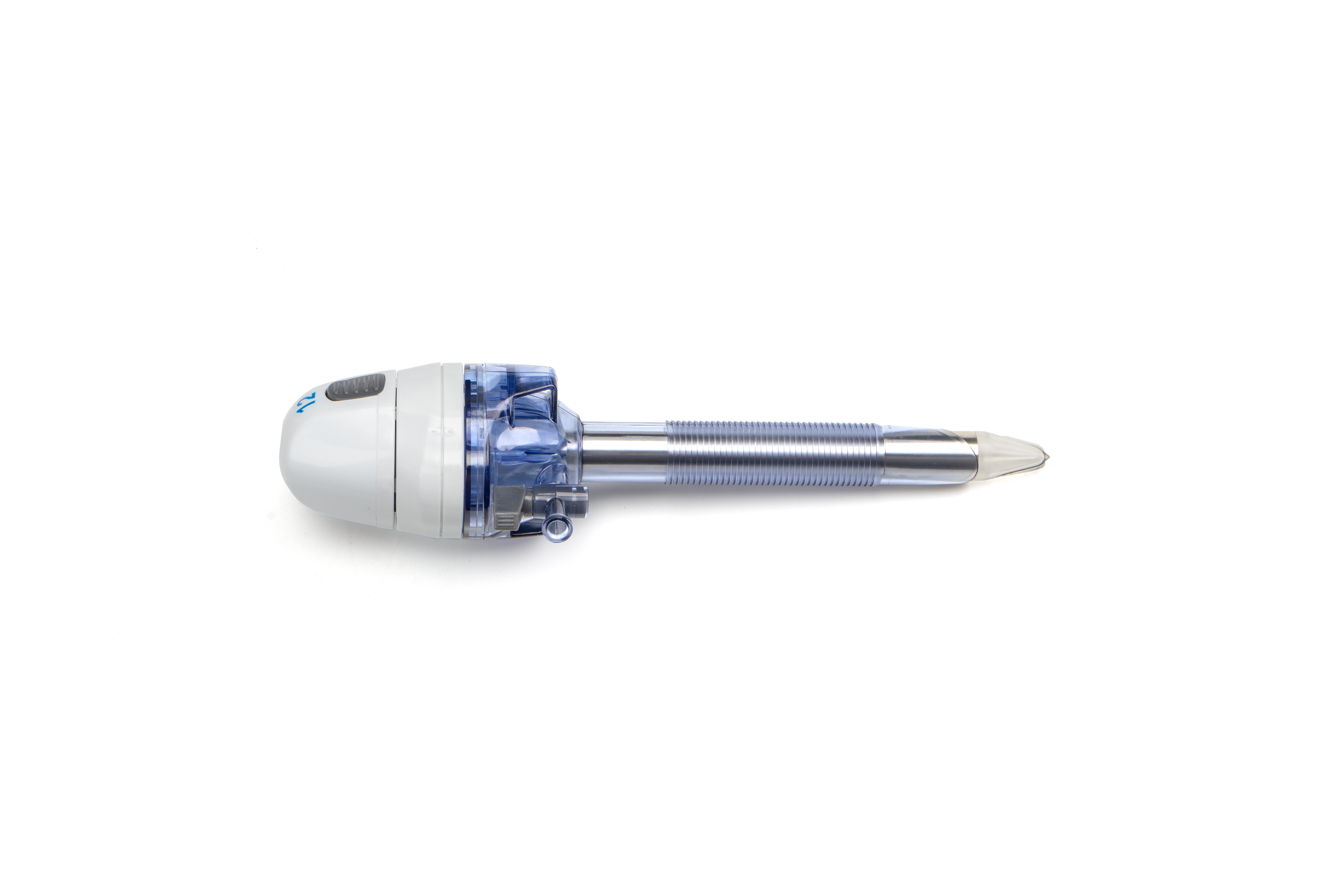

【 Scope Of Application 】
Clinically, it is used to establish surgical channels for laparoscopic surgery.
【 Usage 】
1. Use aseptic techniques to remove the instruments from the packaging. To avoid damaging the instruments, they must not be thrown into the sterile area.
2. When packaging, the puncture core and puncture sleeve of the puncture device are not installed together. When assembling, insert the puncture core into the puncture sleeve until they are firmly
locked together. Before use, close the air blocking valve. When the choke valve is perpendicular to the injection port, the choke valve is in the closed position.
3. Using standard surgical techniques, make a skin incision large enough to introduce a puncture device. A small incision may cause excessive resistance during insertion, requiring increased force to
insert, which may result in uncontrollable insertion.

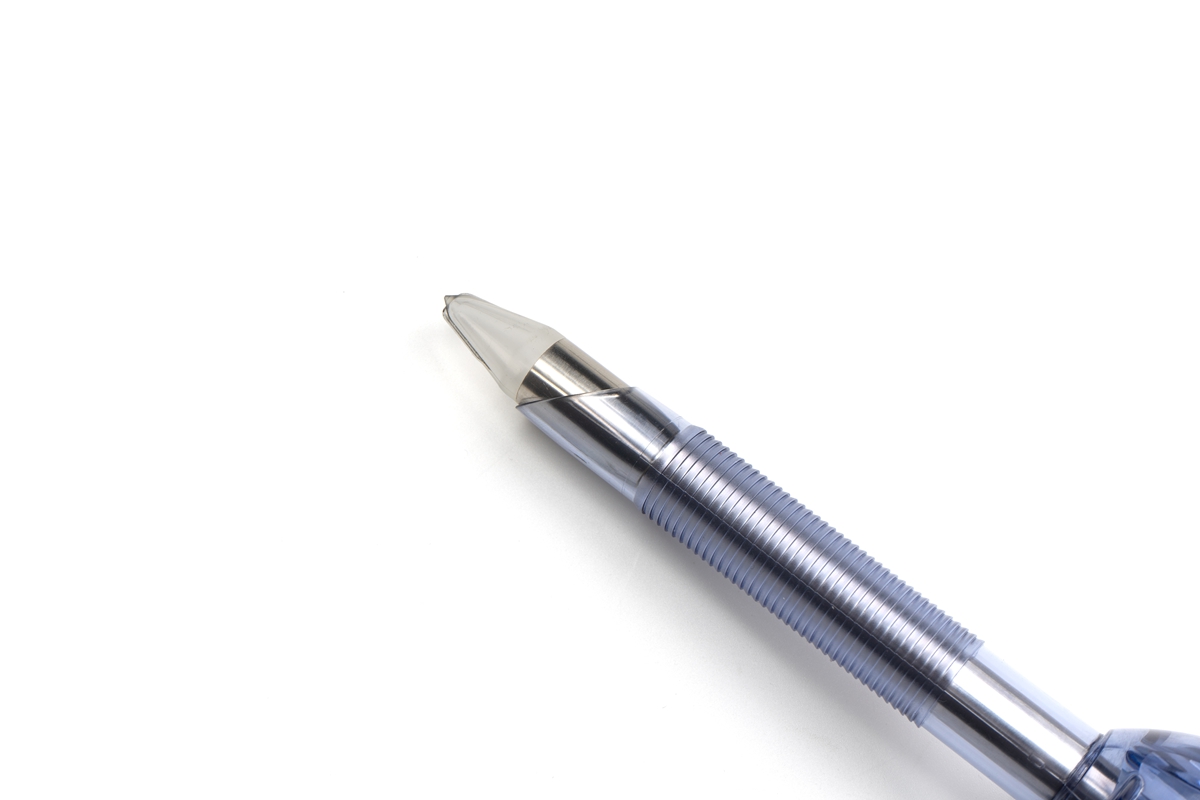

4. Insert the puncture device through a skin incision, rotate the puncture device within the range of 30 ° to 90 ° during insertion, and gently and rhythmically press down on the puncture device during
insertion.
5. After the puncture device enters the abdominal or thoracic cavity, press the puncture core button to remove the puncture core, leaving only the puncture sleeve in its original position. When the
puncture core is withdrawn, the inner sealing layer of the puncture sleeve will automatically close. When there is no instrument in the puncture sleeve, the sealing system will still remain inflated.
6. When inflating, the trachea can be connected to the inflation valve on the puncture sleeve, and the blocking valve can be opened. When there is no instrument in the puncture sleeve, the sealing
system still remains inflated.

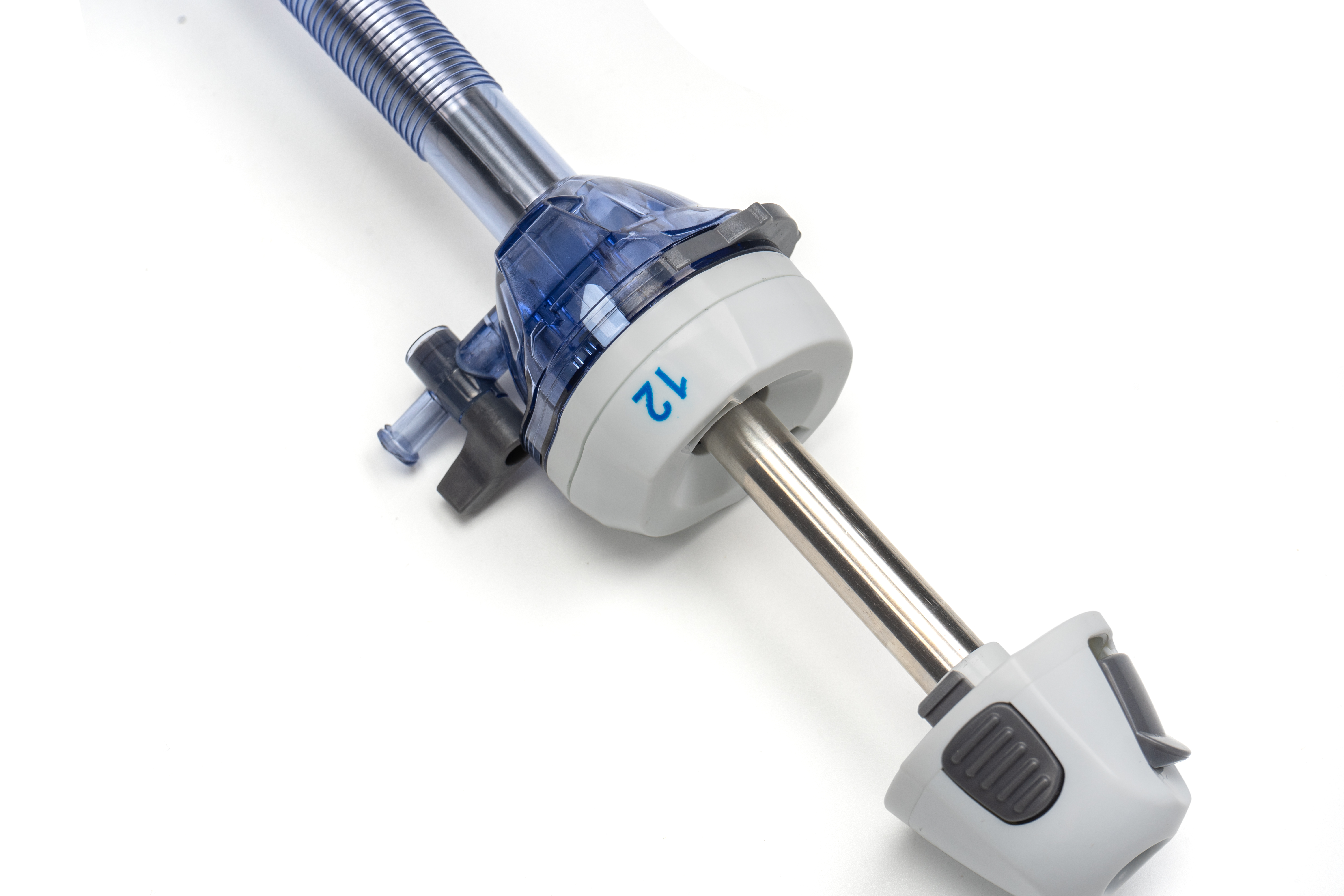

7. During surgery, when removing the specimen, press the middle body lock and then lift the sealing cap to remove it. After removing the specimen, place the sealing cap back on the puncture device
and hear a "pop" sound from the middle body lock, indicating that the sealing cap is installed in place.
8. After completing the surgery, remove the inflation tube. Open the blocking valve and quickly release the gas in the abdominal cavity.
